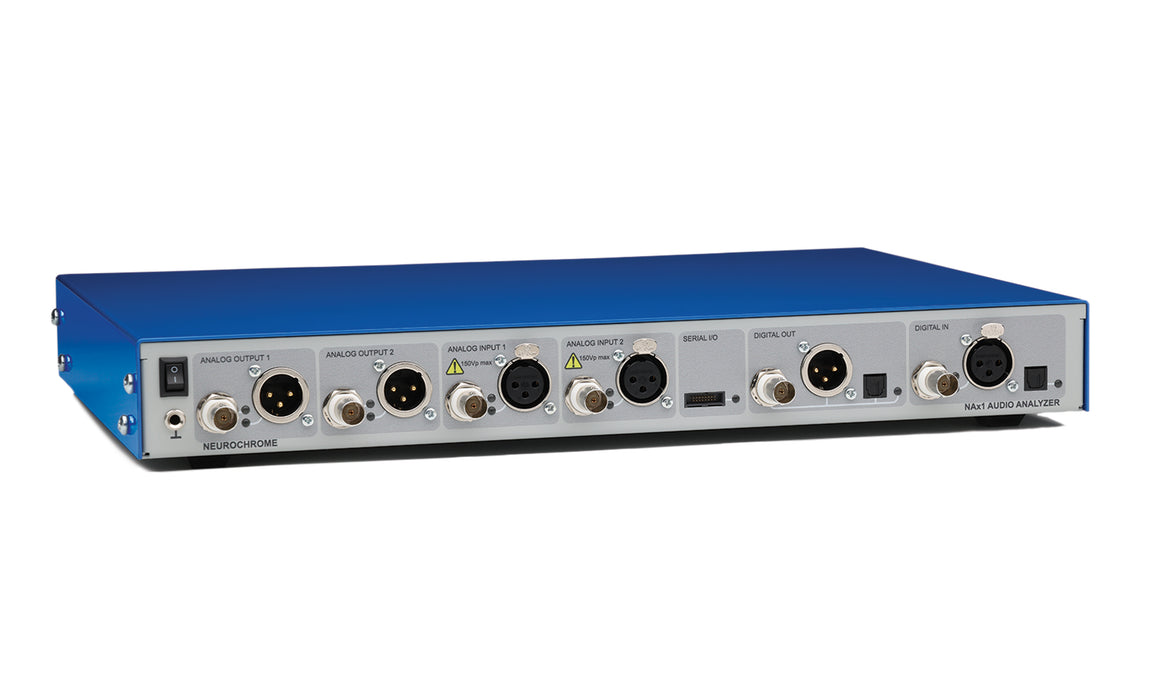

NAx1 Audio Analyzer

The World Premiere for the NAx1 will take place at AXPONA in the Schaumburg Convention Center in Chicago April 10-12, 2026. Meet me at booth EX9137 in the Expo Hall for a personal demo of the NAx1.

Preliminary Specs:

• Analog In: Balanced (XLR) and unbalanced (BNC), two channels (80 V max.)
• Analog Out: Balanced (XLR) and unbalanced (BNC), two channels (16 V max)
• Digital I/O: SPDIF, AES3, TOSLINK, I2S, I2C, and PDM
• THD: ≤ -130 dBc (20 Hz - 20 kHz)
• Spot THD: ≤-145 dBc (1 kHz, 10 kHz, H2-H9)
• Noise: 0.49 µV (RMS, A-weighted); 0.65 µV (RMS, unweighted, 20 Hz - 20 kHz)
• 32 - 384 kHz sampling rate (common multiples of 44.1/48 kHz)

• ±0.05 dB (DC - 100 kHz); ±0.5 dB (DC - 90% of Nyquist)
• Calibrated levels on analog I/Os
• Advanced protection against accidental over-voltage on all analog I/Os
• Galvanically isolated USB interface
• Software Agnostic: Works with any UAC2-compatible software on Mac, Windows, and linux
• Open software protocols. No subscriptions!
• Made in Canada

The specs are subject to change without notice. They will continue to be fleshed out until product launch.

Expected to launch towards the end of Summer 2026.
