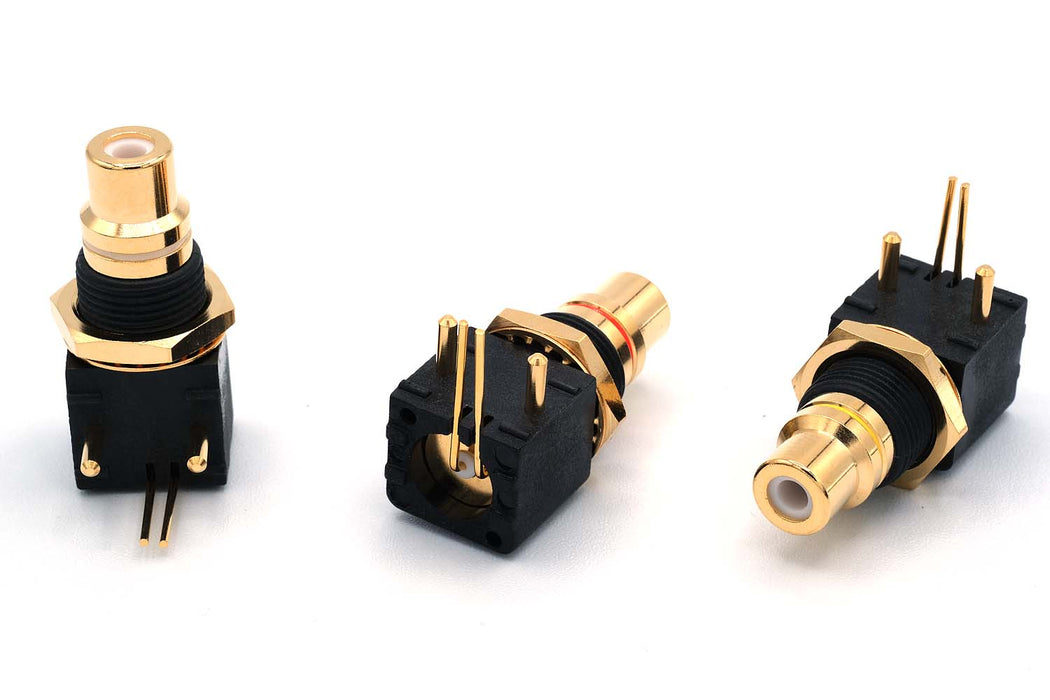

RCA Connectors

RCA Connectors

Availability:
5+ in stock, ready to be shipped
$25 - $25
$25
$25 - $25
$25

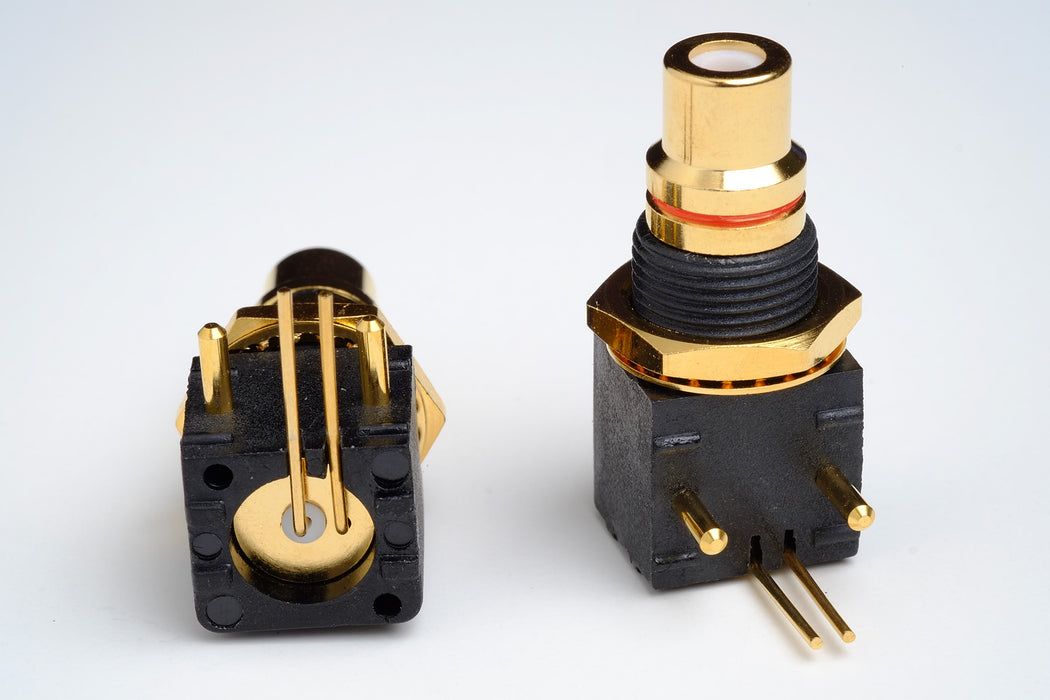

Unlike other PCB mounted RCA connectors, these high-end connectors use round pins. This greatly simplifies the PCB layout and results in a much better connection to the circuit board.

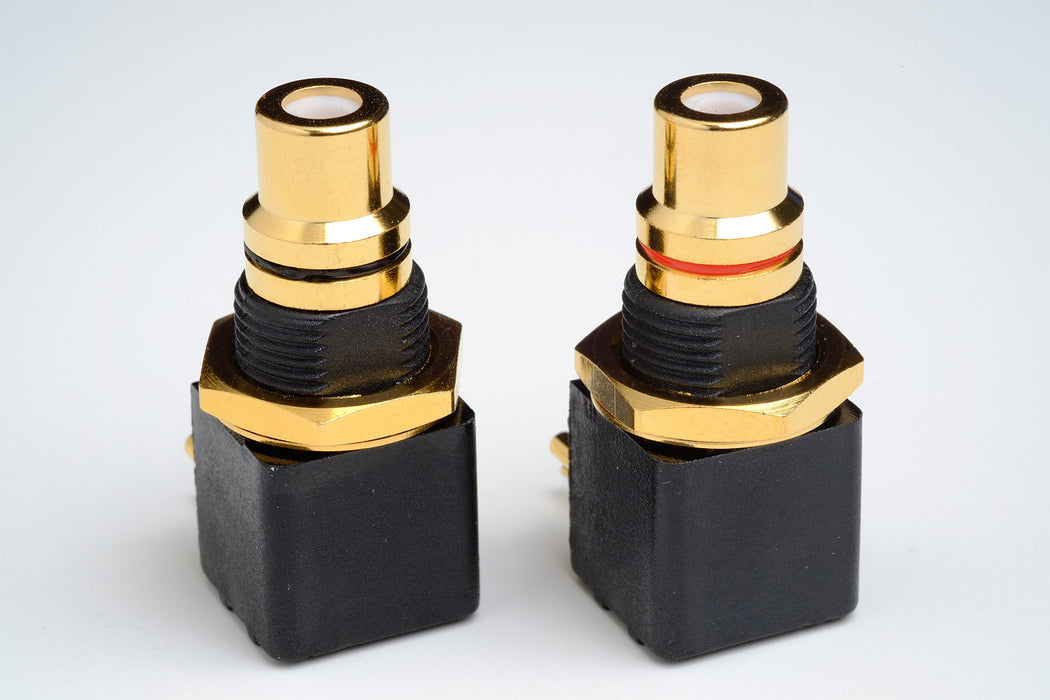

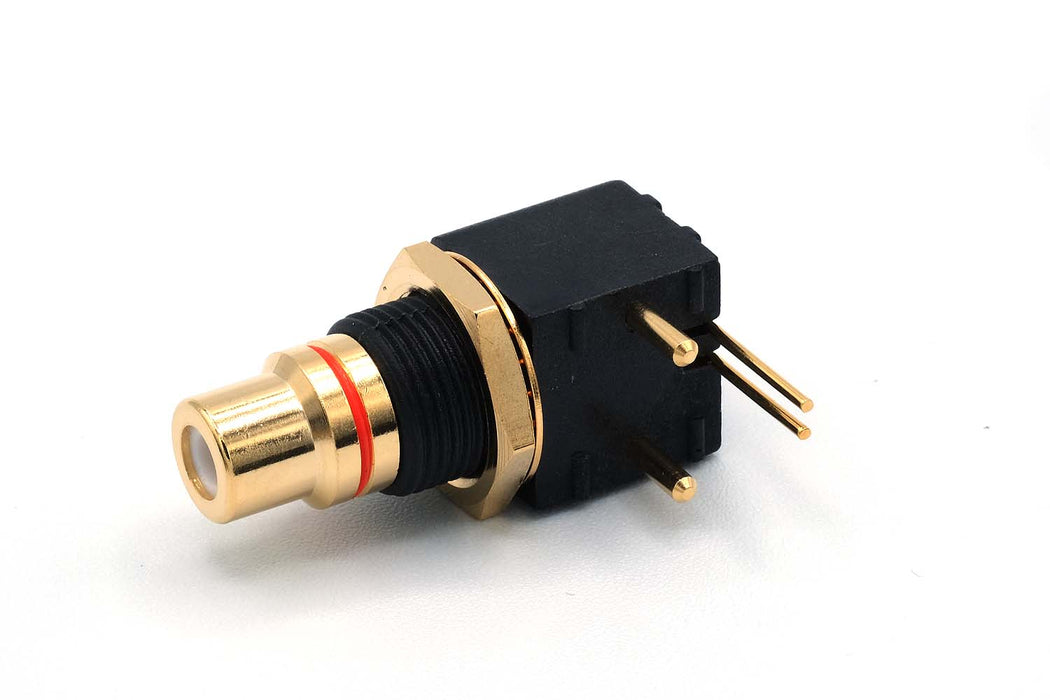

These connectors are sold in pairs. You will receive one red and one black marked connector.
  • Materials
    • Body and contacts: Gold plated brass.
    • Centre insulator: Teflon.
    • Washer: Gold plated steel.
    • Nut: Gold plated brass.

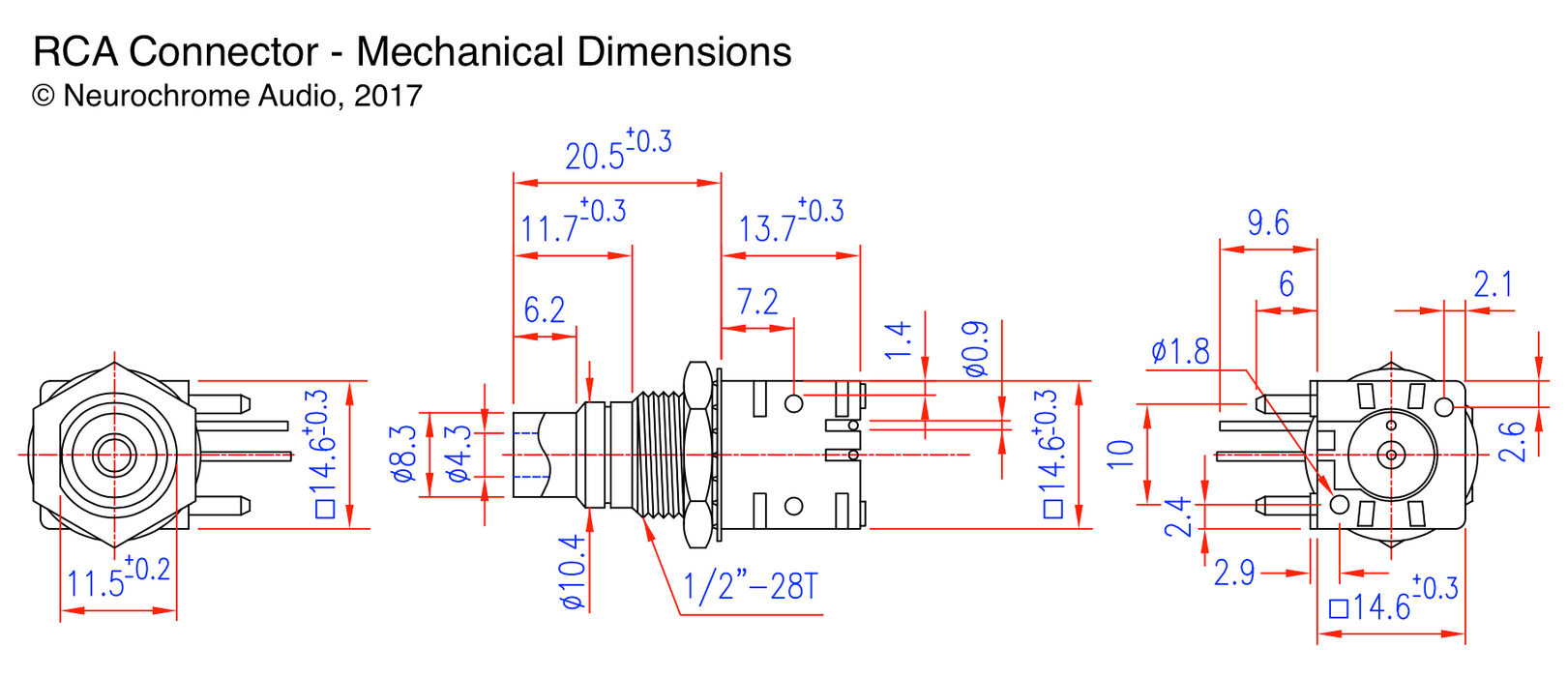

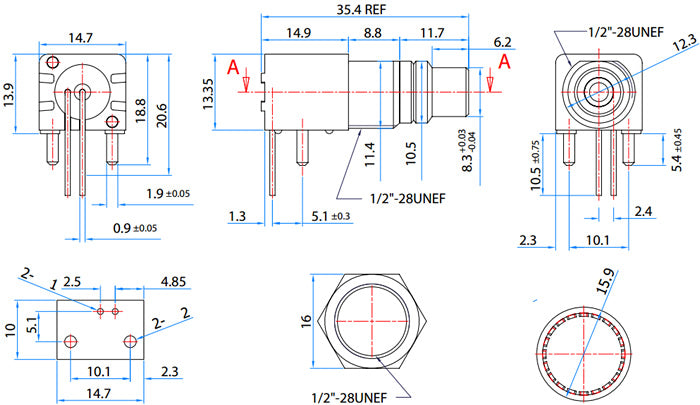

    Max. supported panel thickness: 4.0 mm.

    These connectors are RoHS compliant. Made in Taiwan.
